What macOS version is required to configure the Dock with Applivery?

macOS 10.12 or later is required for most Dock configuration settings.

Do I need device supervision to configure the Dock?

No, device supervision is not required for Dock configuration payloads.

How do I add an application to the Dock using Applivery?

In Applivery, go to Policies, add a Dock configuration, and define the application's path and type (persistent or static).

What is the difference between persistent and static apps in the Dock?

Persistent apps can be removed by users, while static apps are permanently pinned to the Dock.

What is 'Tile Data' when configuring Dock items?

Tile Data is a dictionary that tells macOS how to identify and render each item (App, Folder, File) added to the Dock.

How do I add a folder to the Dock using Applivery?

Use a 'directory-tile' with the folder's absolute path in the 'file-data' dictionary. You can also configure how the folder is displayed (stack or folder).

How do I add a website URL to the Dock?

Use a 'url-tile' and specify the URL and label. Clicking the icon will open the URL in the default browser.

Where can I configure the Dock's position and size?

The Applivery Dock configuration supports appearance and behavior settings, including position and size.

Dock Configuration

The Dock is the application launcher bar that appears at the bottom (or sides) of the macOS screen by default. Through Applivery, you can configure and lock down the Dock across your entire managed Mac fleet — controlling which Apps appear, where the Dock is positioned, how it behaves, and whether users can modify it at all.

This is particularly useful for standardizing the user environment on shared or corporate-issued Macs, ensuring that key organizational tools are always visible and accessible.

Requirements

macOS: 10.12 or later (most settings). Some keys require newer versions — noted where relevant.
Supervision: Not required for Dock configuration payloads.
Enrollment type: Applies to device-level enrolment and user-channel profiles.

Dock configuration

How to configure the Dock

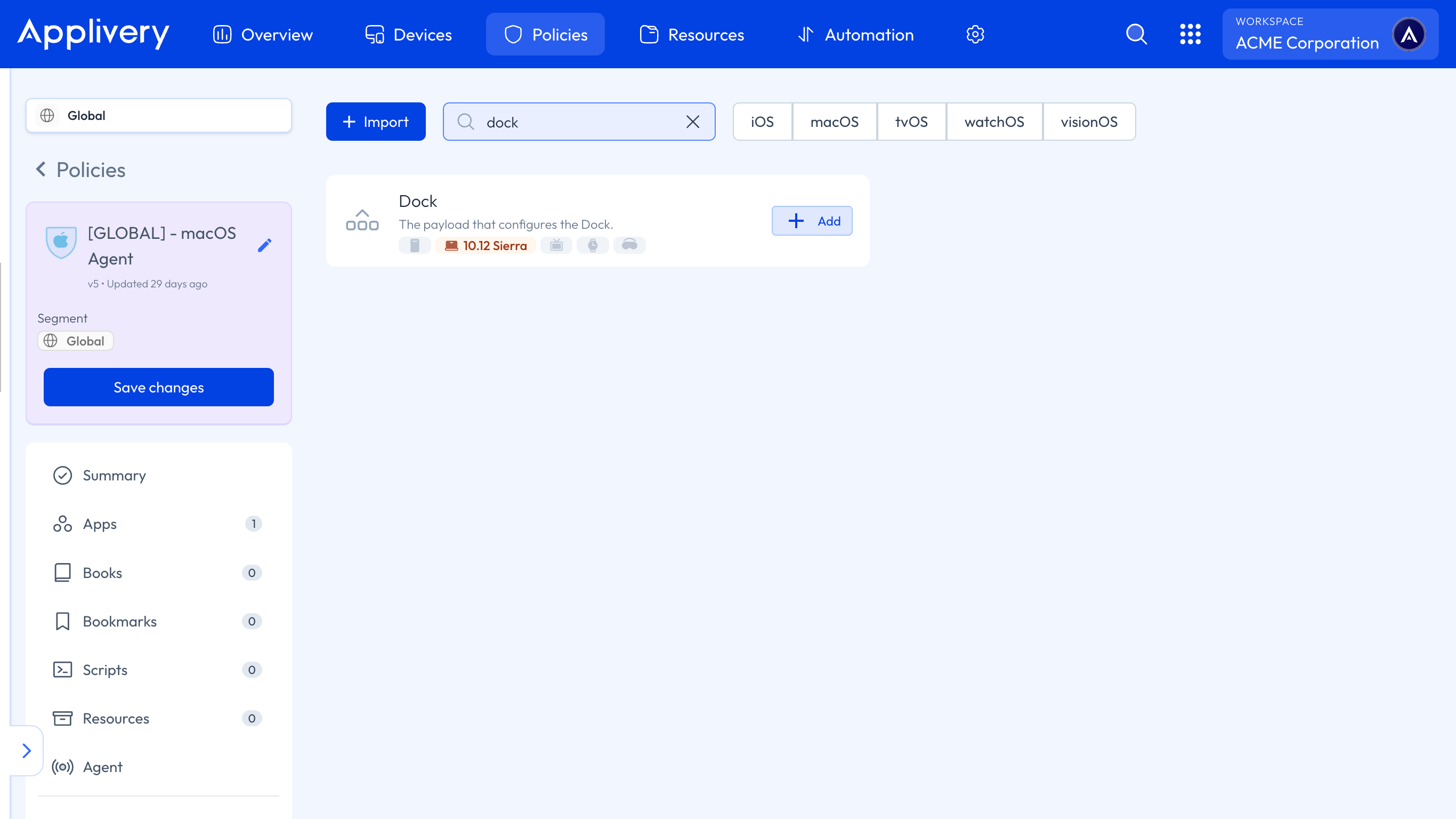

Once in the Applivery Dashboard, head to any of your Policies or create a new one. From the left-hand menu, navigate to the + Add configuration option and then choose Dock.

Dock Layout: Adding Apps, Folders and Files

The Dock configuration allows you to define which items appear in the Dock and in what order. Items are organized into two main sections — Apps (left side of the divider) and others (right side of the divider, for folders and files) — and each item type requires a different configuration.

Persistent Apps vs. Static Apps

When adding applications to the Dock, you must choose one of two modes for each App:

Mode	Key	Behavior
Persistent Apps	`persistent-apps`	The App appears in the Dock, but users can remove it by dragging it out.
Static Apps	`static-apps`	The App is permanently pinned to the Dock. Users cannot remove it.

Tip

Use static-apps for mandatory organizational tools (e.g., your VPN client, ticketing system, or company portal). Use persistent-apps for recommended Apps where some user flexibility is acceptable.

Equally, for non-application items (Folders, Files, URLs):

Mode	Key	Behavior
Persistent Others	`persistent-others`	Folders and files that the user can remove.
Static Others	`static-others`	Folders and files permanently fixed in the Dock.

Tile Data: Defining each Dock item

Every item added to the Dock — whether an App, Folder, or File — requires a Tile Data dictionary that tells macOS how to identify and render it. The required keys vary depending on the tile type.

Application tiles (tile-type: application-tile)

Key	Type	Description
`file-data`	Dictionary	Contains the `_CFURLString` key with the full path to the application.
`_CFURLString`	String	Absolute path to the `.app` bundle. Example: `/Applications/Safari.app`
`_CFURLStringType`	Integer	Always `0` for local file paths.
`tile-type`	String	Must be `application-tile`.
`label`	String	Optional. Display name shown under the icon. If omitted, the App's default name is used.

Example: Adding Safari

<dict>
  <key>tile-data</key>
  <dict>
    <key>file-data</key>
    <dict>
      <key>_CFURLString</key>
      <string>/Applications/Safari.app</string>
      <key>_CFURLStringType</key>
      <integer>0</integer>
    </dict>
    <key>label</key>
    <string>Safari</string>
  </dict>
  <key>tile-type</key>
  <string>application-tile</string>
</dict>

Folder tiles (tile-type: directory-tile)

Used to add Folders (such as the Downloads folder or a shared network volume) to the right side of the Dock.

Key	Type	Description
`file-data`	Dictionary	Contains `_CFURLString` with the full path to the Folder.
`_CFURLString`	String	Absolute path to the Folder. Example: `~/Downloads` or `/Users/Shared`
`_CFURLStringType`	Integer	`0` for local paths.
`tile-type`	String	Must be `directory-tile`.
`displayas`	Integer	How the folder is shown: `0` = Stack, `1` = Folder.
`showas`	Integer	How contents are revealed: `0` = Automatic, `1` = Fan, `2` = Grid, `3` = List.
`arrangement`	Integer	Sort order of Folder contents: `1` = Name, `2` = Date Added, `3` = Date Modified, `4` = Date Created, `5` = Kind.
`label`	String	Optional display label.

Example: Adding the Downloads folder as a grid stack

<dict>
  <key>tile-data</key>
  <dict>
    <key>file-data</key>
    <dict>
      <key>_CFURLString</key>
      <string>/Users/username/Downloads</string>
      <key>_CFURLStringType</key>
      <integer>0</integer>
    </dict>
    <key>label</key>
    <string>Downloads</string>
    <key>displayas</key>
    <integer>0</integer>
    <key>showas</key>
    <integer>2</integer>
    <key>arrangement</key>
    <integer>2</integer>
  </dict>
  <key>tile-type</key>
  <string>directory-tile</string>
</dict>

URL tiles (tile-type: url-tile)

Adds a web URL directly to the Dock. Clicking it opens the URL in the default browser.

Key	Type	Description
`url`	String	The URL to open. Example: `https://intranet.company.com`
`label`	String	Display name shown under the icon.
`tile-type`	String	Must be `url-tile`.

Dock appearance and behavior settings

Beyond the items in the Dock, the configuration supports a full set of appearance and behavior settings.

Position and size

Key	Type	Values / Description
`orientation`	String	Position of the Dock on screen: `bottom` (default), `left`, `right`.
`tilesize`	Integer	Size of Dock icons in points. Range: `16`–`128`. Default: `64`.
`magnification`	Boolean	If `true`, icons magnify when hovered.
`largesize`	Integer	Maximum icon size when magnification is enabled. Range: `16`–`128`. Only effective if `magnification` is `true`.

Auto-hide and show

Key	Type	Description
`autohide`	Boolean	If `true`, the Dock hides automatically when not in use and reappears on hover.
`autohide-delay`	Real	Delay in seconds before the Dock hides (default: `0.5`). Example: `0.0` for instant.
`autohide-time-modifier`	Real	Duration multiplier for the hide/show animation. `0.0` = instant, `1.0` = default speed, `0.5` = twice as fast.

Animations and visual effects

Key	Type	Description
`launchanim`	Boolean	If `true`, apps animate (bounce) when opened from the Dock.
`mineffect`	String	Animation style when windows are minimized into the Dock: `genie` (default) or `scale`.
`minimize-to-application`	Boolean	If `true`, minimized windows collapse into the app icon rather than into the Dock tray.
`show-recents`	Boolean	If `false`, the "Recent Applications" section is hidden from the Dock. Requires macOS 10.14+.

Window and App Management

Key	Type	Description
`expose-group-apps`	Boolean	If `true`, Mission Control groups windows by application.
`mru-spaces`	Boolean	If `false`, Spaces are not automatically reordered based on recent use. Useful for keeping a fixed space layout.
`show-process-indicators`	Boolean	If `true` (default), a dot appears under running application icons. Set to `false` to hide these indicators.

Locking the Dock to prevent user changes

The Dock configuration includes several lock keys that prevent users from modifying the Dock configuration set by MDM. These are particularly important in standardized or shared-device environments.

Key	Type	Description
`contents-immutable`	Boolean	If `true`, users cannot add, remove, or rearrange items in the Dock. The Dock is fully locked.
`size-immutable`	Boolean	If `true`, users cannot resize the Dock.
`position-immutable`	Boolean	If `true`, users cannot change the Dock's position on screen.
`autohide-immutable`	Boolean	If `true`, users cannot toggle the auto-hide setting.
`magnify-immutable`	Boolean	If `true`, users cannot toggle magnification.
`magsize-immutable`	Boolean	If `true`, users cannot change the magnification size.
`mineffect-immutable`	Boolean	If `true`, users cannot change the minimize animation style.

Tip

Setting contents-immutable to true is the most common approach for locked-down devices. It prevents users from adding, removing, or rearranging items, but does not restrict the Dock's visual settings unless the corresponding *-immutable keys are also enabled.

Common configuration examples

A corporate Mac with a fixed set of mandatory Apps. Users cannot modify the Dock at all.

Set contents-immutable to true.
Add required apps under static-apps.
Set show-recents to false to hide the Recent Apps section.
Set position-immutable and size-immutable to true if you also want to lock visual settings.

Apps the organization wants visible by default, but allows users to customize from there.

Add Apps under persistent-apps (not static-apps).
Leave all *-immutable keys at false.
Set tilesize to a comfortable default for your hardware.

A shared Device where the Dock must always look the same, regardless of who logs in.

Set contents-immutable, size-immutable, position-immutable, autohide-immutable all to true.
Use static-apps and static-others exclusively.
Set autohide to false to keep the Dock always visible.
Set show-recents to false.

Important behaviors and limitations

Payload updates apply at the next login or Policy sync. Changes to the Dock payload are applied when the MDM profile is refreshed. In some cases, the user may need to log out and back in for changes to fully take effect.
static-apps vs. persistent-apps take effect together. If you define both, static-apps items appear first and are locked; persistent-apps items follow and are flexible.
User-added items may persist between MDM updates if contents-immutable is not set. When a new profile is pushed without this lock, previously user-added items may remain in the Dock.
App paths must be exact. If an application is not installed at the path specified in _CFURLString, the Dock will show a broken icon. Ensure the App is installed on the device before or alongside the Dock payload.
~ (tilde) expansion in paths may not work reliably in MDM payloads. Use absolute paths (e.g., /Users/Shared/) instead of user-relative paths where possible, or use dynamic variables.
The Dock configuration does not install apps. It only configures what appears in the Dock. Apps must be separately deployed via App Management before being added to the Dock configuration.
